    DC 5V 12V 1 Channel Relay Module Infrared IR Remote Switch Control 1 CH Relay Driving Board Controller For Electronic

    Ask Lasest Price
    Brand Name : DZSICO
    Model Number : Channel Relay Module Infrared IR Remote Switch
    Certification : ISO9001 | ISO14001 | CE | ROHS
    Price : 10 - 259 Pieces = $2.17, 260 - 539 Pieces = $1.97, 540 - 5399 Pieces = $1.92, ≥ 5400 Pieces = $1.88
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 18600 Pieces Per Month Channel Relay Module Infrared IR Remote Switch
    Delivery Time : 1-10T - 7Days, 11-25T - 10Days, 26-100 - 10Days, > 100-To be negotiated
    • Product Details
    • Company Profile

    DC 5V 12V 1 Channel Relay Module Infrared IR Remote Switch Control 1 CH Relay Driving Board Controller For Electronic

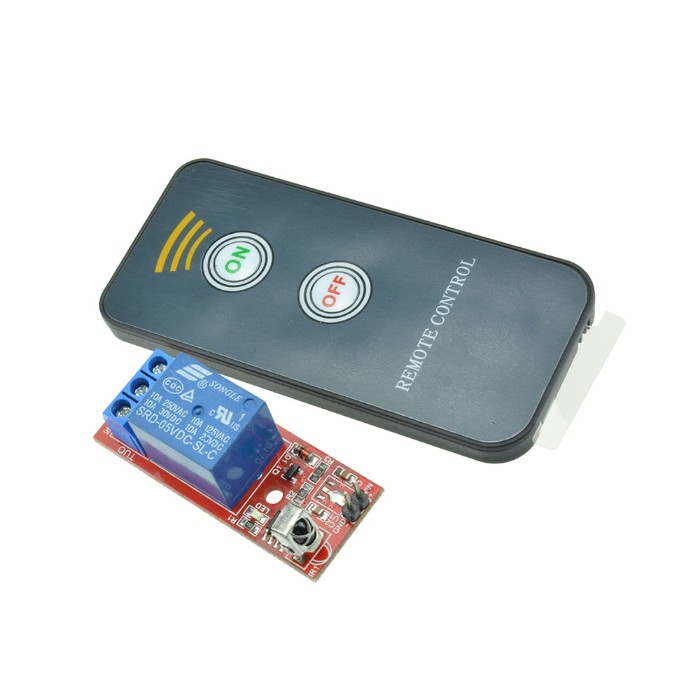

    DC 5V 12V 1 Channel Relay Module Infrared IR Remote Switch Control 1 CH Relay Driving Board Controller for Electronic DIY

    # Channel Relay Module Infrared IR Remote Switch Properties

    LED indicator
    With 3mm fixed screw holes, it's easy to install.
    Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode
    The middle of three ports is public, it can be normally open and normally closed output with the others.
    The circuit is insulated before the relay's output and input.
    Remote Controller make use of UPD6122 chip and NED coding format,
    frequency is 38K.
    Remote Controller User Code: OxOOFF
    Key Value: "ON"---40, "OFF"---19
    Battery: CR2025(Batteries are not included.)


    # Channel Relay Module Infrared IR Remote Specification:
    Operating Voltage: DC 5V / 12V
    Remote Distance: 8m
    Weight: 33g
    Relay Size: 5(L)x2(W)x1.8(H)cm
    Remote Controller Size: 4(L)x0.7(W)x8.5(H)cm


    # Channel Relay Module Infrared IR Remote Package Included:
    1 x 1 Channel Wireless IR Remote Relay Module


    DC 5V 12V 1 Channel Relay Module Infrared IR Remote Switch Control 1 CH Relay Driving Board Controller For Electronic
